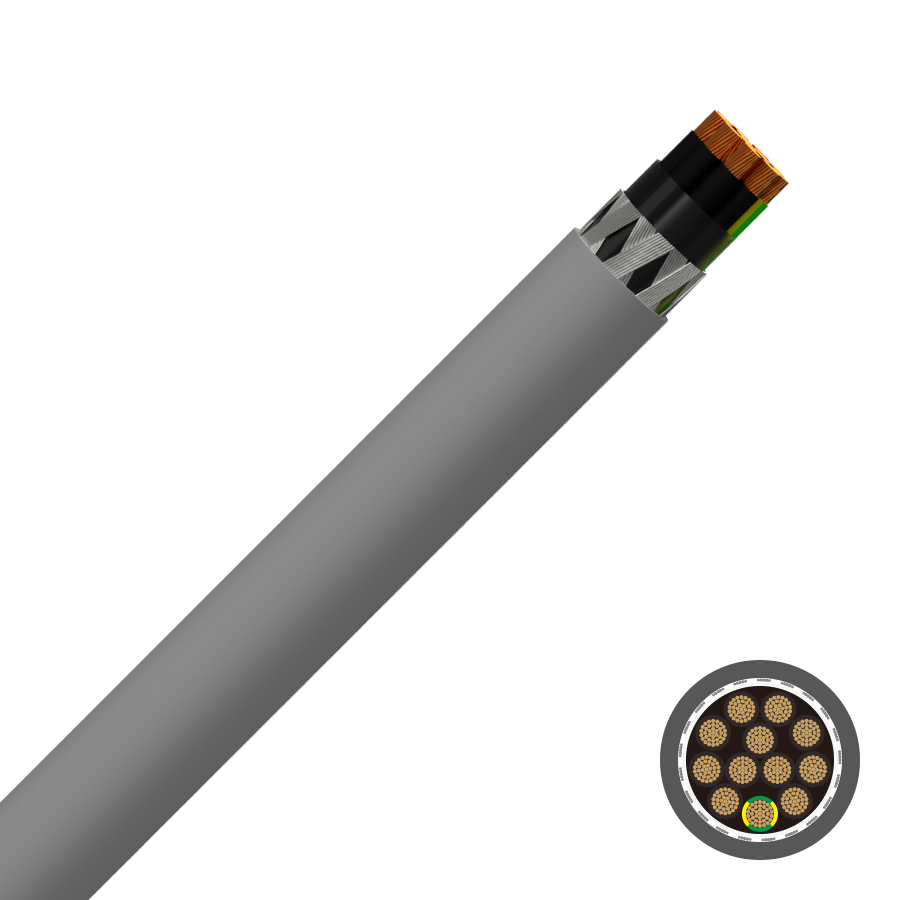

VDE 0207 CY PVC (YSLCY) Control Cable
CY cables, also known as screened flexible cables or by their European designation YSLYCY (PVC sheathed) and HSLHCH (LSZH sheathed), are used as interconnecting cables for measurement, control or regulation in control equipment for assembly and production lines, conveyors, and computer units. They are also known by their constructional reference, YSLCY cable and HSLCH cable.
Application
Screened flexible connecting cables for instrumentation and control equipment, for tooling machinery production lines and, inflexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. These cables are not used for outdoor or underground installation.
Standard
-VDE 0207-363-3
-VDE 819-102 (TM54)
-IEC/EN 60332-1-2 : Flame Retardant
Construction
Conductor: Class 5 flexible plain copper
Insulation: PVC (Polyvinyl Chloride)
PET (Polyester Tape)
Screen TCWB (Tinned Copper Wire Braid)
Sheath: PVC (Polyvinyl Chloride)
Core Identification: Black with White number
From 3 cores: Black with White number + Green/Yellow
Sheath Colour: Grey
Technical Parameter
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF OUTER SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/km | |
| 2 | 0.5 | 0.4 | 0.8 | 5.4 | 41 |
| 2 | 0.75 | 0.4 | 0.9 | 6.1 | 52 |
| 2 | 1 | 0.4 | 0.9 | 6.5 | 60 |
| 2 | 1.5 | 0.4 | 0.9 | 7.1 | 74 |
| 3 | 0.5 | 0.4 | 0.8 | 5.8 | 51 |
| 3 | 0.75 | 0.4 | 0.9 | 6.4 | 65 |
| 3 | 1 | 0.4 | 0.9 | 6.8 | 76 |
| 3 | 1.5 | 0.4 | 0.9 | 7.5 | 98 |
| 3 | 2.5 | 0.5 | 1 | 9 | 146 |
| 4 | 0.5 | 0.4 | 0.8 | 6.2 | 64 |
| 4 | 0.75 | 0.4 | 0.9 | 6.9 | 82 |
| 4 | 1 | 0.4 | 0.9 | 7.4 | 96 |
| 4 | 1.5 | 0.4 | 0.9 | 8.1 | 122 |
| 4 | 2.5 | 0.5 | 1.1 | 10 | 190 |
| 4 | 4 | 0.6 | 1.2 | 11.9 | 283 |
| 4 | 6 | 0.65 | 1.3 | 13.5 | 386 |
| 4 | 10 | 0.75 | 1.5 | 17.1 | 630 |
| 4 | 16 | 0.75 | 1.6 | 20.4 | 910 |
| 4 | 25 | 0.9 | 1.8 | 24.4 | 1364 |
| 4 | 35 | 0.95 | 1.9 | 28 | 1814 |
| 5 | 0.5 | 0.4 | 0.8 | 6.7 | 77 |
| 5 | 0.75 | 0.4 | 0.9 | 7.4 | 97 |
| 5 | 1 | 0.4 | 0.9 | 8 | 116 |
| 5 | 1.5 | 0.4 | 1 | 9 | 152 |
| 5 | 2.5 | 0.5 | 1.1 | 10.8 | 228 |
| 5 | 4 | 0.6 | 1.2 | 12.9 | 332 |
| 5 | 6 | 0.65 | 1.3 | 14.8 | 457 |
| 5 | 10 | 0.75 | 1.5 | 18.7 | 749 |
| 5 | 16 | 0.75 | 1.7 | 22.6 | 1125 |
| 5 | 25 | 0.9 | 1.9 | 27 | 1683 |
| 7 | 0.5 | 0.4 | 0.8 | 7.2 | 93 |
| 7 | 0.75 | 0.4 | 0.9 | 8 | 121 |
| 7 | 1 | 0.4 | 1 | 8.8 | 148 |
| 7 | 1.5 | 0.4 | 1 | 9.7 | 191 |
| 7 | 2.5 | 0.5 | 1.1 | 11.7 | 290 |
| 12 | 0.5 | 0.4 | 1 | 9.6 | 154 |
| 12 | 0.75 | 0.4 | 1 | 10.4 | 193 |
| 12 | 1 | 0.4 | 1.1 | 11.4 | 236 |
| 12 | 1.5 | 0.4 | 1.2 | 12.9 | 315 |
| 18 | 0.75 | 0.4 | 1.2 | 12.4 | 281 |
| 18 | 1 | 0.4 | 1.2 | 13.4 | 339 |
| 18 | 1.5 | 0.4 | 1.3 | 15.1 | 452 |
| 25 | 0.75 | 0.4 | 1.3 | 14.8 | 331 |
| 25 | 1 | 0.4 | 1.3 | 16 | 461 |
| 25 | 1.5 | 0.4 | 1.4 | 18.1 | 616 |
