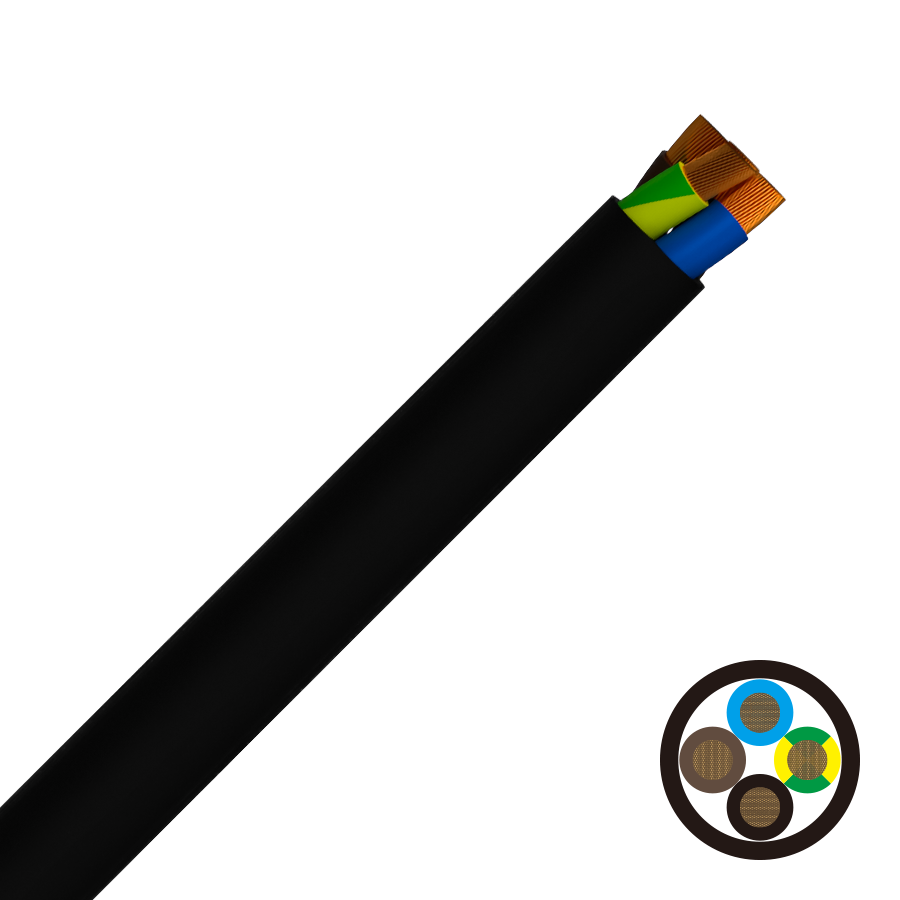

60245 IEC 53 (YZ) 300/500V Ordinary Duty Tough Rubber Insulated and Sheathed Flexible Cable
Our company has strong new product development ability and fast response ability and advanced international design concept, we closely follow the development of new technology in the world, and launch all kinds of high performance and high reliability VV Power Cable, BS5467 Cable, Steel Wire Armoured Cable, Bare Conductor. With the business philosophy of ‘quality service promotes product sales’, we forge ahead in the industry. The high-quality service solves the worries for many users and wins the high praise and trust of them! Our merchandise sell all over the domestic and abroad thanks for the regular and new customers support.
Application
60245 IEC53(YZ) Ordinary Duty Tough Rubber Sheathed Flexible Cable.
It is suitable for household appliances,electric tools/instrument and other various moveable electrical equipments of rated voltage up to and including 450/750V.
Standard
-60245 IEC 53 YZ (H05RR-F): Copper conductor, Rubber compound IE4 insulation, Rubber compound SE3 sheath, Ordinary tough rubber sheathed cord
-60245 IEC 57 YZW (H05RN-F): Copper conductor, Rubber compound IE4 insulation, Rubber compound SE4 sheath, Ordinary polychloroprene sheathed cord
-60245 IEC 66 YCW(H07RN-F): Copper conductor, Rubber compound IE4 insulation, Rubber compound SE4 sheath, Heavy polychloroprene sheathed flexible cable
-60245 IEC 81 YH 60245 IEC 82 YHF(H01N2-E): Copper conductor, Rubber compound SE3 or SE4 sheath, Arc welding electrode cable
Construction
(1) Flexible Copper conductor
(2) Rubber insulated
(3) Rubber sheath
Technical Characteristic
1.Rated Voltage: 300-500V,450/750V
2.60245 IEC 53 Cable（YZ）
3.Ordinary Duty Tough Rubber sheathed flexible cable
4.CU/Rubber Insulated/Rubber sheath
Technical Parameter
| Number and Nominal Cross-section Area of Conductor | Thickness of Insulation | Thickness of Sheath | Mean Overall Diameter | |
|---|---|---|---|---|
| Specified value | Specified Value | Lower Limit | Upper Limit | |
| mm2 | mm | mm | mm | mm |
| 2×0.75 | 0.6 | 0.8 | 5.7 | 7.4 |
| 2×1 | 0.6 | 0.9 | 6.1 | 8 |
| 2×1.5 | 0.8 | 1 | 7.6 | 9.8 |
| 2×2.5 | 0.9 | 1.1 | 9 | 11.6 |
| 3×0.75 | 0.6 | 0.9 | 6.2 | 8.1 |
| 3×1 | 0.6 | 0.9 | 6.5 | 8.5 |
| 3×1.5 | 0.8 | 1 | 8 | 10.4 |
| 3×2.5 | 0.9 | 1.1 | 9.6 | 12.4 |
| 4×0.75 | 0.6 | 0.9 | 6.8 | 8.8 |
| 4×1 | 0.6 | 0.9 | 7.1 | 9.3 |
| 4×1.5 | 0.8 | 1.1 | 9 | 11.6 |
| 4×2.5 | 0.9 | 1.2 | 10.7 | 13.8 |
| 5×0.75 | 0.6 | 1 | 7.6 | 9.9 |
| 5×1 | 0.6 | 1 | 8 | 10.3 |
| 5×1.5 | 0.8 | 1.1 | 9.8 | 12.7 |
| 5×2.5 | 0.9 | 1.3 | 11.9 | 15.3 |
