Stock Code: 874632

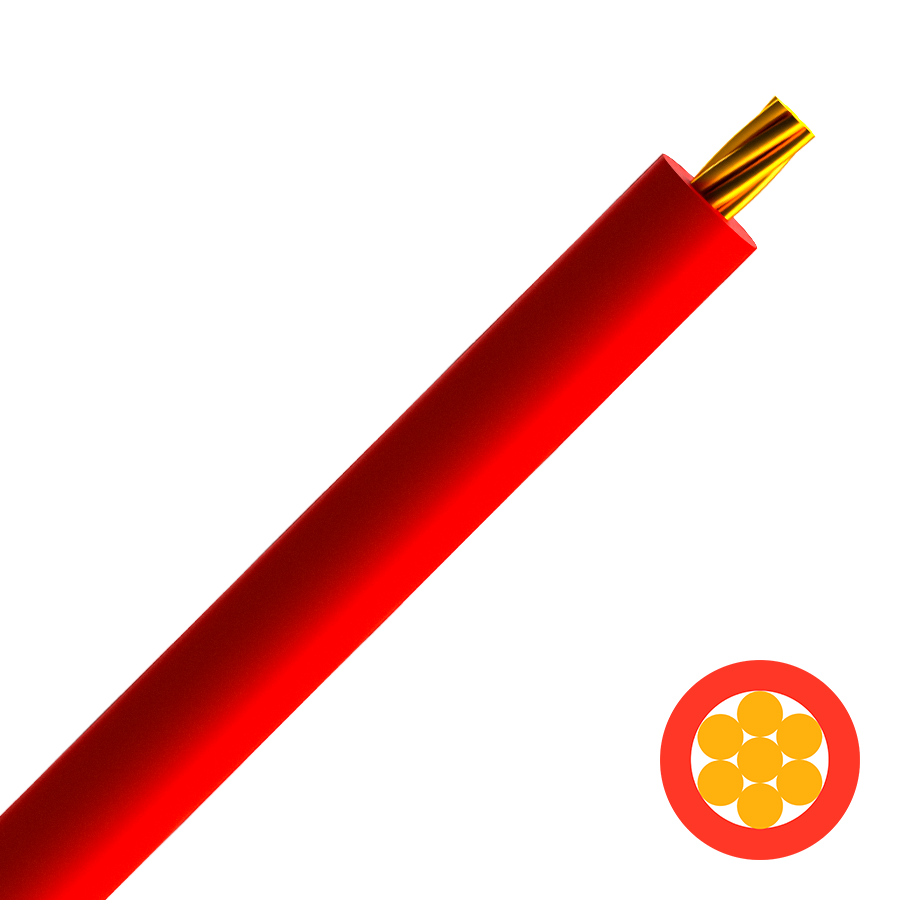

CU/LSOH H05Z-U H05Z-R LSZH Building Wire

H05Z-U and H05Z-R cables are referred to 6491B no sheath single core cables insulated with halogen-free crosslinked compound and having low emission of smoke and corrosive gases when exposed to fire with rated voltage up to and including 300/500V.

Application

H05Z-R U is normally used in industrial and agricultural workshop, heating installations or internal wiring of switchboards and distributor boards. They normally installed in conduit and trunking or can be surface nounted if used as earth cable. They are good options for using in public buildings to reduce the threat to life and equipment cased by smoke and toxic fumes. They can’t be installed incontrete without mechanic protection.

Standard

These cables stand out due to their improved properties against fire since they comply with the non-fire propagation test according to UNE-EN 60332, EN 60332 e IEC 60332.

Construction

Conductor: plain annealed copper Class 1 or Class 2

Insulation: LSZH

Rated voltage: 300V/500V

Operating temperature -15℃~+90℃

Min bending radius: more than 6 times of overall diameter

Sizes: 14 AWG – 750 kcmil.

Technical Characteristic

Working voltage: 300/500v
Test voltage: 2000 / 2500 volts
Flexing bending radius: 15 x Ø
Static bending radius: 10 x Ø
Flexing temperature: +5º C to +90º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
