BS 638 0361TQ Orange Sleeved Flexible Welding Cable

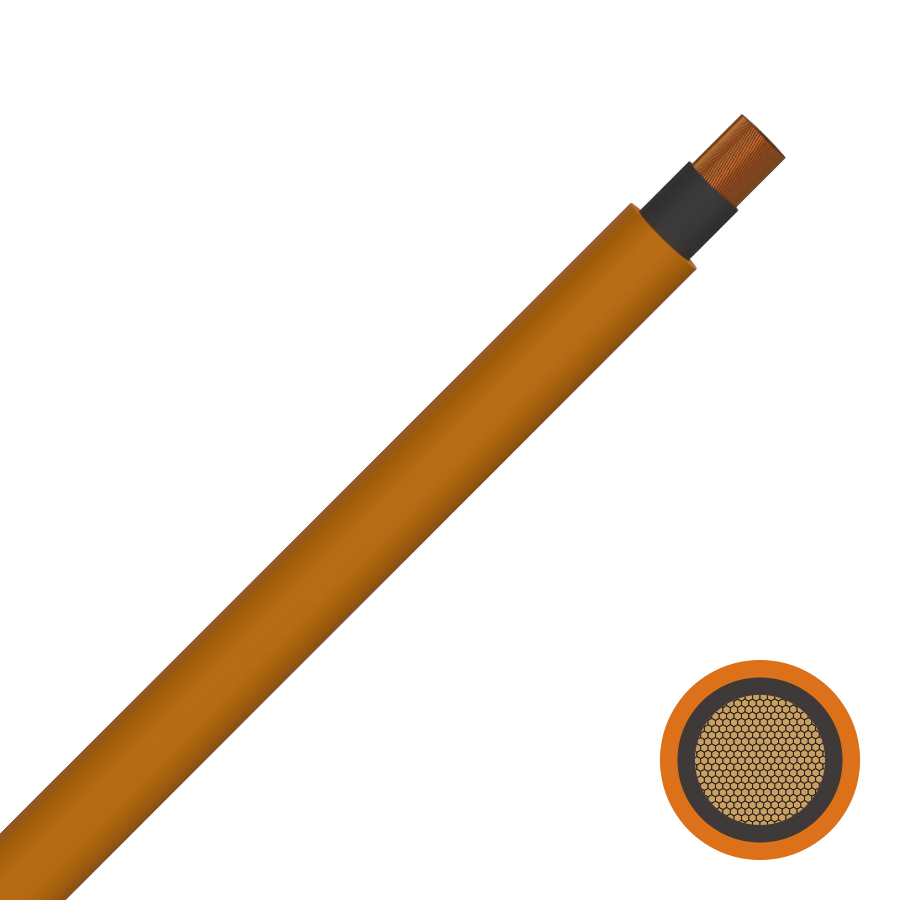

0361TQ sleeved flexible welding cable is a single core double-insulated flexible welding cable with a Heat and Oil Resistant, Flame-Retardant (HOFR) outersheath. It is designed to transmit high currents from electric welding machines to the welding tool itself. 0361TQ cables are constructed with Class 6 extra flexible conductors for cables with a cross-sectional area up to 95mm2 and Class 5 flexible conductors for cable sizes over 120mm2, allowing for flexible use under rough conditions including on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, and for manually and automatically operated line and spot welding machines.
Application
0361TQ is an orange sleeved flexible welding cable used for connection of an electric welding machine to the welding gun. This cable carries large current for the purposes of welding metal together in automatic and manual welding machines. It is high quality cable for all work cycles from occasional use to a 100% duty cycle. Suitable for use in factory assembly lines and conveyor systems, machine tool and car manufacturing / repairs etc.
Standard
-BS 638 Part 4
-Flame retardant to BS EN 50525-2-81
-Conforms to IEC 60332-1-2
Construction
Conductor: Tinned annealed flexible stranded circular copper conductor, single core
Insulation: Neutral Ethylene Propylene Rubber (EPR)
Sheath: Chlorosulphinated Polythene (CSP)
Sheath Colour: Orange
Technical Characteristic
Voltage Rating: 100 Volts
Temperature Limits: -20°C to +85°C
Minimum Bending Radius: As per cable manufacturer datasheet
Should not be installed at temperatures below 0°C
For more information please consult a member of the Cleveland Cable Sales Team
Technical Parameter
| Size | Class of Conductor | Max Diameterof Dires | Mean Thickness of Insulation | Nominal overall Diameter | Approx. Weight | BATT Part No | BATT Part No |
|---|---|---|---|---|---|---|---|
| sq.mm | mm | mm | mm | kg/km | Black | Orange | |
| 16 | 6 | 0.21 | 2 | 10.9 | 212 | 19024 | 19003 |
| 25 | 6 | 0.21 | 2 | 12.5 | 300 | 19023 | 19006 |
| 35 | 6 | 0.21 | 2 | 14 | 403 | 19009 | 19012 |
| 50 | 6 | 0.21 | 2.2 | 16 | 560 | 19005 | 19034 |
| 70 | 6 | 0.21 | 2.4 | 18.6 | 776 | 19004 | 19036 |
| 95 | 6 | 0.21 | 2.6 | 21.2 | 1035 | 19050 | 19042 |
| 120 | 5 | 0.51 | 2.8 | 23.1 | 1300 | 19025 | 19029 |
| 150 | 5 | 0.51 | 3 | 25.5 | 1650 | 19048 | 19031 |
| 185 | 5 | 0.51 | 3.2 | 27.9 | 1944 | 19049 | 19032 |
| 240 | 5 | 0.51 | 3.4 | 30 | 2330 | 19060 | – |
