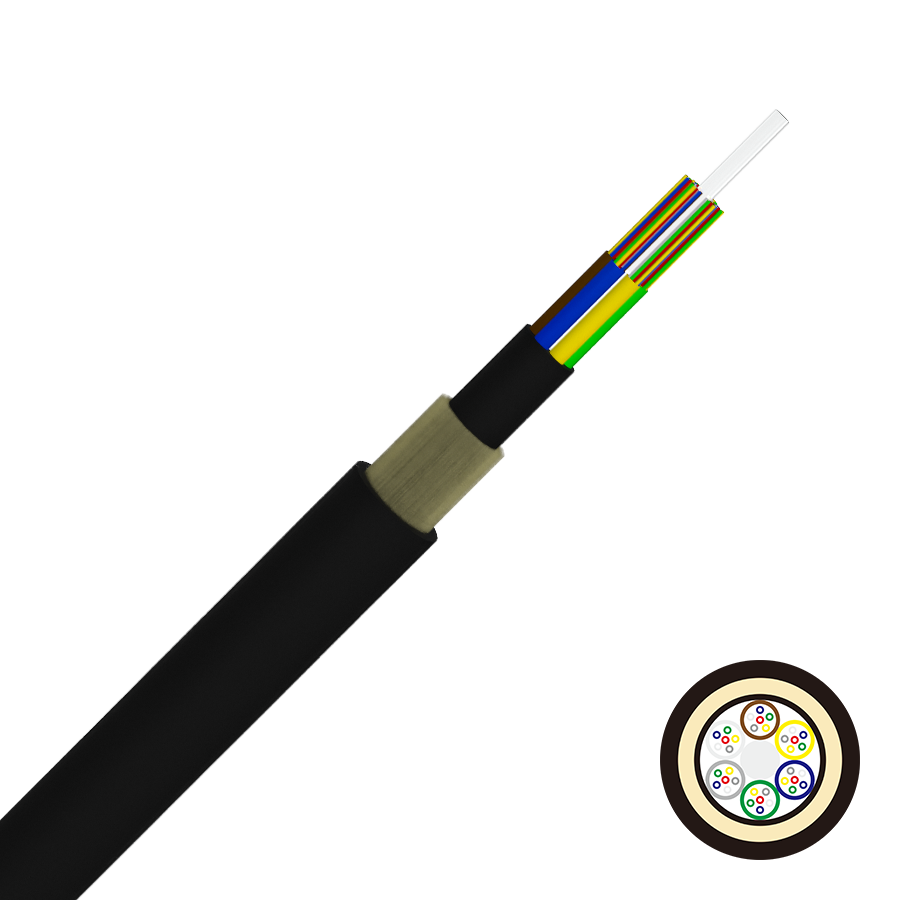

The ADSS cable consists of a number of tubes/elements according to the specified number of fibers. The elements are usually fiber-containing tubes; however fillers may be used to preserve the cable geometry. Two to twelve color-coded fibers are loosely laid in each tube which is filled with a water-blocking gel.

The tubes are stranded around a dielectric central strength member and bound in a jacket. A water-swelling tape is helically wrapped around the cable core. Aramid yarn strength members are helically laid to supply peripheral strengthening of the cable. The outer jacket is tightly bound over the aramid yarn layer. For long span applications a double jacket design can be considered. A ripcord is located under each jacket layer to facilitate its removal.

For up to 30 fiber cables, the “ADSB” design is applicable, for 32-144 fibers the “ADSC” design is applicable. Dry cable designs, ballistic protection and other cable designs are available upon request.. Standards – Cables are designed for aerial installation according to IEEE-P1 222 – Cables tested according to TIA/EIA-455 and IEC-60794-1. – Cables meet or exceed Telcordia (Bellcore) requirements for outside plant cables (GR-20) when the appropriate options are chosen.
