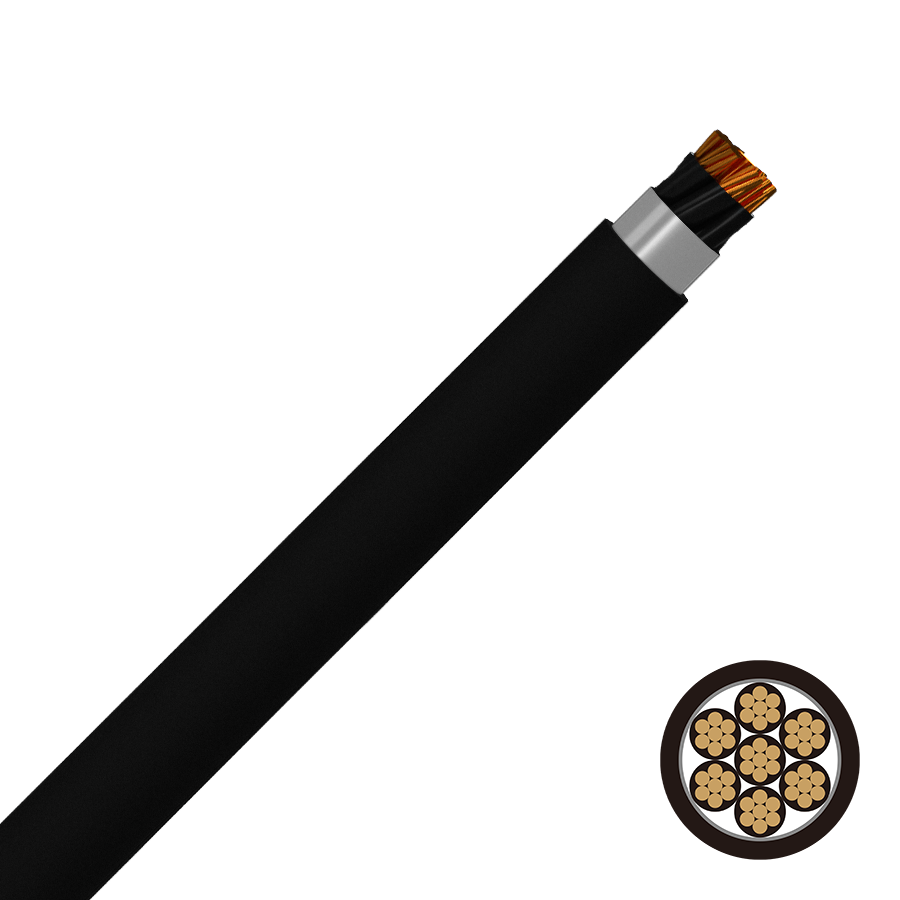

600/1000V PVC Insulation and Sheath Control Cable
PVC insulated power cables are suitable for fixed laying on transmission and distribution lines with AC 50Hz and rated voltages of 6 kV and below.The cable has good chemical stability, excellent bending resistance, and is easy to install and maintain.
Application
PVC insulated power cables are used for electricity supply in low voltage installation system. This product is mainly used in chemical and industrial fields, and the laying method is mainly buried underground.
Standard
-GB/T330,
-IEC60227,
-IEC60502
Construction
Conductor：Solid aluminum or copper conductors
Insulation: PVC type TI1
Filler(optional): Polypropylene yarn
Binder Tape(optional): Polyester & Non-woven tape
Inner Sheath/ Bedding: PVC
Armour: Single core is AWA (Aluminum Wire Armor) & Multi-core is SWA (Steel Wire or Tape Armour)
Outer Sheath: PVC type TM1
Technical Characteristic
MODEL：PV1-F
Conductor：Tinned copper wire,class 5 (as per lEC 60228)
Insulation：No Halogen PO insulation
Sheath：No Halogen PO sheath
rated voltage：AC 0.6/1KV、DC 1.8KV
Temperature range：-40°C~+90°C.dry/ humidity
Max.working temperature of conductor：120°C
During short circuit：200°C
Technical Parameter
| Number of Cores and Nominal Area | Nominal Thickness of Insulation | Approx. Overall Dia. | Approx. Weight | Max. DC Resistance at 20℃ | Recommending Current Rating-In Ground | Recommending Current Rating-I(A) |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | kg/km | Ω | A | A |
| 1×50 | 1.4 | 19.1 | 530 | 0.387 | 162 | 129 |
| 1×70 | 1.4 | 21.1 | 650 | 0.268 | 198 | 163 |
| 1×95 | 1.6 | 23.4 | 810 | 0.193 | 238 | 200 |
| 1×120 | 1.6 | 26.3 | 960 | 0.153 | 270 | 232 |
| 1×150 | 1.8 | 28.3 | 1115 | 0.124 | 301 | 265 |
| 1×185 | 2 | 30.8 | 1315 | 0.0991 | 338 | 303 |
| 1×240 | 2.2 | 34.1 | 1610 | 0.0754 | 388 | 356 |
| 1×300 | 2.4 | 37 | 1890 | 0.0601 | 434 | 407 |
| 1×400 | 2.6 | 42 | 2455 | 0.047 | 480 | 462 |
| 1×500 | 2.8 | 45.6 | 2945 | 0.0366 | 528 | 520 |
| 1×630 | 2.8 | 49.7 | 3495 | 0.0283 | 577 | 582 |
| 1×800 | 2.8 | 55.8 | 4210 | 0.0221 | 605 | 628 |
| 1×1000 | 3 | 61 | 4870 | 0.0176 | 638 | 677 |
